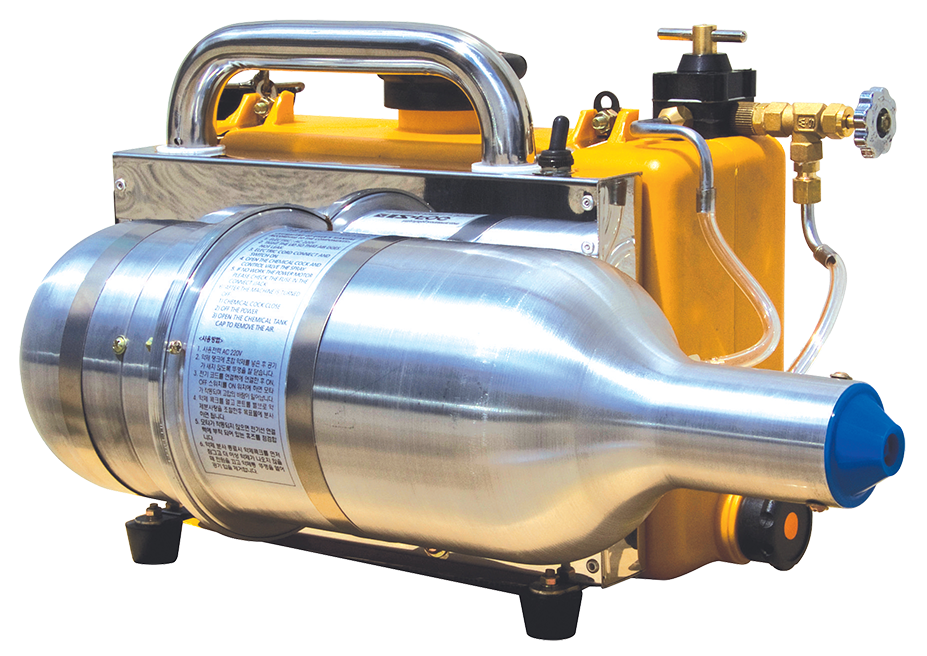

ELECTRIC POWERED ULV SPRAYER IS-33
The IS 33 ULV is a highly efficient, easy to operate and extremely silent machine. It is used for ULV (Ultra Low Volume) spraying applications indoor as well as outdoor.
It is widely used for the application of fungicides, bactericides, disinfectants, deodorizers, odour neutralizers, humidification and insect control for both residential and industrial applications, this including horse stables, farms, animal care facilities, green houses, warehouses, cheese factories, restaurants, hotels, medical facilities, schools and many more for virus control, bacteria control, Aspergillus fumigatus control and insect control.
Model: IS33
|
Start Mode |
Automatic |
|
|
Power Supply |
AC 220V by Electric 1.6KW |
|
|
Arrival Length of spray |
12m |
|
|
Dimension (L x W x H) |
460 x 290 x 260 (mm) |
|
|
Weight |
5 kg |
|
|
Chemical tank capacity |
7 L |
|
|
Chemical Discharge Rate (max) |
60/H |
|
|
Particle Size |
5 - 50 Micron |
|
|
Main Body Material |
Aluminium & stainless |
|
|
Chemical Tank Material |
Plastic |
|
|
Motor RPM |
20.000/min |
|

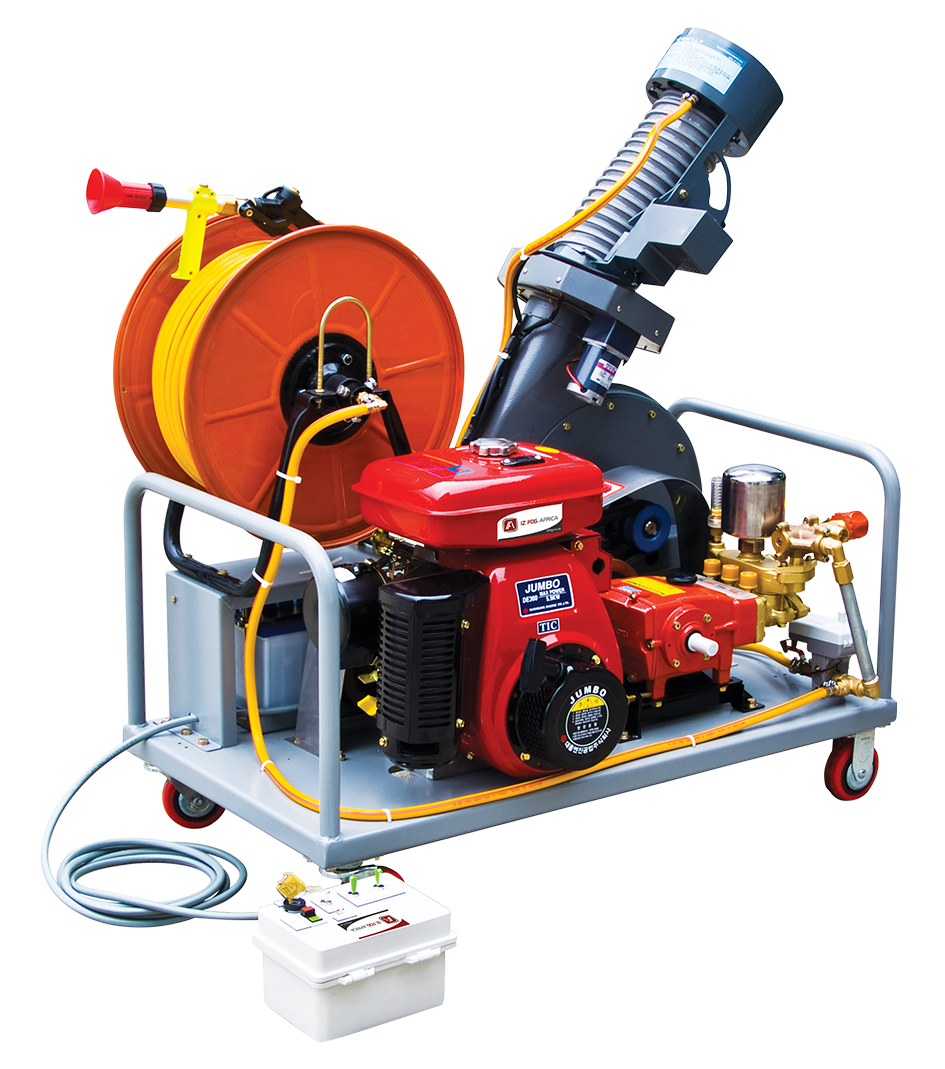

TURBO POWER ULV SPRAYER IS-12001
The IS 12001 is a reliable, easy to operate, user-friendly machine. It is built with the highest quality materials and needs very little maintenance. The IS-12001 is largely used for the control of malaria mosquito, tobacco beetle, stink bug and general insects.
Model: IS-12001
|
Specification |
Size: L x W x H: 1100 x 700 x 900 (cm) |
|
Spray Nozzle: 4 nozzle spray hole with spray gun |
|
|
Moving caster |
|
|
Control box |
|
|
Spray Hole 180˚ Revolve (left and right) up and down 45˚ move |
|
|
Spray System Automatic on and off |
|
|
Engine |
Air cooling system 4 cycle gasoline engine |
|
Start motor recoil start 2 system |
|
|
Normal horse power 5H.P, 1800RPM |
|
|
Max horse power 8HP, 2000 RPM |
|
|
Fuel consumption normal 2.3 L/h max 2.7 L/h |
|
|
Proper voltage DC 12V |
|
|
Air blower |
Revolutions: 3.600 RPM |
|
Discharge capacity: 30 ㎥/min |
|
|
Pressure: 380 kg/㎠ |
|
|
Sprayer |
Automatic pressure system 50 A |
|
Pressure: 30 – 50 kg/㎠ |
|
|
Discharge capacity: normal 42 L/min, max 66 L /min |
|
|
Revolutions: 700 – 1.200 RPM |
